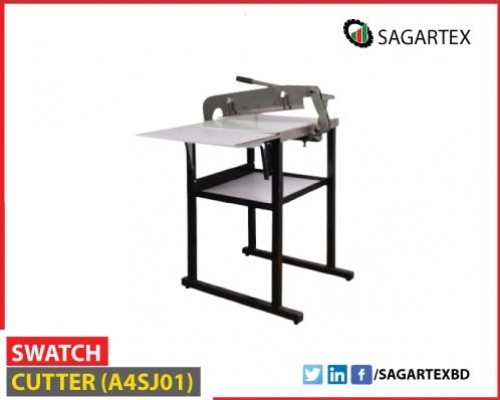

Swatch Cutter @ Tk. 55,000
Item SpecificationsPrice : 55 000 BDT Warranty Period : One Year Model : A4SJ01 Stock : In Stock Origin : Singapore Accessories : Available Brand : Suja Global Product : Available DescriptionIntroducation
Swatch Cutter is an accurate & convenient Equipment for preparing swatches with pinking edges in multiple layers to a depth of 20 mm (0.8”) and width of 300 mm (12”).
Equipment
Swatch Cutter is a user friendly versatile Swatch Cutting Machine for making swatches upto 300mm (12”) wide quickly & conveniently. The specially designed Equipment can cut swatches in multiple layers up to a depth of 20mm. It can make samples out of any type of fabric (woven/knitted or non woven) with the special imported Italian scissor.
The equipment is mounted on a strong & sturdy table for ease in operation. The sample sizes can conveniently determined by the graduated screen fixed on the fabric guide bar. The cutting area is fully protected by a transparent acrylic sheet for safety, which also helps the operator to view the cutting operation. The specially designed cutting board is provided to support the sample to cut & long life of the blade. A specially designed long handle is attached with the equipment for smooth cutting with minimum operator fatigue. The equipment is meticulously finished in blue & grey paint to give a gorgeous look.
Features.
- Specially designed equipment to prepare swatches of different size & design.
- Sample up to 300mm width & any length can be cut.
- Depth of the sample up to 20mm can easily be cut.
- A sturdy Wooden stand to keep the equipment stable during operation.
- Smooth precision-engineered components for exceptional performance.
- Pinking blade tip gives excellent look of swatches prepared.
- A Calibrated scale is provided to prepare sample of different sizes as required.
- Supplied with inspection certificates.
Technical Specification Cutting Width 300 mm Cutting Height 20 mm Dimension of the cutting pad 300 x 300 mm (±2 mm) Graduated Scale 32 Cm. on left side & 27 Cm. on right side; From the “0” Position (cut position) L/C 1 mm Dimension of the Instrument (Including Table) 700 (L) x 600 (W) x 1295 (H) mm Dimension of the Instrument (Excluding Table) 600 (L) x 600 (W) x 560 (H) mm Net Weight of the Instrument 32 Kg. (71 lb) Net Weight of the Table : 21 Kg. (46 lb) Supplied Complete with below Accessories. Main Unit 01 No. Sturdy Table (Fitted or Dismantled Position) 01 No. Special Cutting Mat/ Board (Made in Italy) 01 No. Double End Spanner – (13-13) 01 No. Double End Spanner – (10-10) 01 No. This User’s Manual 01 No. Inspection & Conformance Certificate 01 No.
