Swatch Cutter - Bangladesh

Swatch Cutter @ Tk. 55,000

Item Specifications

Price	:	55000
Warranty Period	:	One Year
Model	:	A4SJ01
Stock	:	In Stock
Origin	:	Singapore
Discount	:	No
Accessories	:	Available
Brand	:	SUJA GLOBAL
Product	:	Available

Description

Introducation

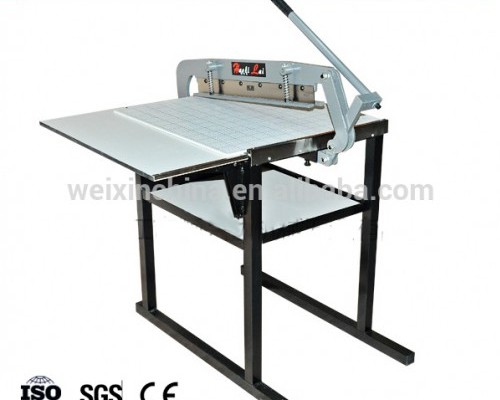

Swatch Cutter is an accurate & convenient Equipment for preparing swatches with pinking edges in multiple layers to a depth of 20 mm (0.8”) and width of 300 mm (12”).

Equipment

Swatch Cutter is a user friendly versatile Swatch Cutting Machine for making swatches upto 300mm (12”) wide quickly & conveniently. The specially designed Equipment can cut swatches in multiple layers up to a depth of 20mm. It can make samples out of any type of fabric (woven/knitted or non woven) with the special imported Italian scissor.

The equipment is mounted on a strong & sturdy table for ease in operation. The sample sizes can conveniently determined by the graduated screen fixed on the fabric guide bar. The cutting area is fully protected by a transparent acrylic sheet for safety, which also helps the operator to view the cutting operation. The specially designed cutting board is provided to support the sample to cut & long life of the blade. A specially designed long handle is attached with the equipment for smooth cutting with minimum operator fatigue. The equipment is meticulously finished in blue & grey paint to give a gorgeous look.

Features.

Specially designed equipment to prepare swatches of different size & design.
Sample up to 300mm width & any length can be cut.
Depth of the sample up to 20mm can easily be cut.
A sturdy Wooden stand to keep the equipment stable during operation.
Smooth precision-engineered components for exceptional performance.
Pinking blade tip gives excellent look of swatches prepared.
A Calibrated scale is provided to prepare sample of different sizes as required.
Supplied with inspection certificates.

Technical Specification
Cutting Width	300 mm
Cutting Height	20 mm
Dimension of the cutting pad	300 x 300 mm (±2 mm)
Graduated Scale	32 Cm. on left side & 27 Cm. on right side; From the “0”
Position (cut position) L/C	1 mm
Dimension of the Instrument (Including Table)	700 (L) x 600 (W) x 1295 (H) mm
Dimension of the Instrument (Excluding Table)	600 (L) x 600 (W) x 560 (H) mm
Net Weight of the Instrument	32 Kg. (71 lb)
Net Weight of the Table :	21 Kg. (46 lb)

Supplied Complete with below Accessories.
Main Unit	01 No.
Sturdy Table (Fitted or Dismantled Position)	01 No.
Special Cutting Mat/ Board (Made in Italy)	01 No.
Double End Spanner – (13-13)	01 No.
Double End Spanner – (10-10)	01 No.
This User’s Manual	01 No.
Inspection & Conformance Certificate	01 No.
