Economical mechanical tension meter for checking  fibres, threads and fine wires with low tensions up to max. 100 cN

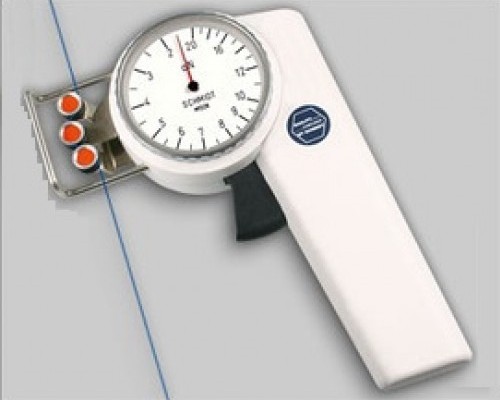

Most popular tension meter in the textile industry with analog display for low tensions

Slim filament guide with small guide rollers for limited access space

• The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
• Filament guide and roller shifting mechanism ensure easy acquisition of the running material
• Large, easy to read scale (54 mm Ø)
• Light weight

• Everything in operator’s view:
  - the guide rollers
  - the measured material
  - the readings
• Ball-bearing mounted, V-grooved guide rollers
• Each instrument is individually calibrated for highest accuracy
• Housing made of high-strength plastic
• Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
• Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Model	Tension Ranges cN	Measuring Head Width* mm	SCHMIDT Calibration Material**
ZF2-5	1 - 5	43	Filament: 25 tex
ZF2-10	1 - 10	43	Filament: 25 tex
ZF2-12	1 - 12	43	Filament: 25 tex
ZF2-20	2 - 20	43	Filament: 25 tex
ZF2-30	3 - 30	43	PA: 0.12 mm Ø
ZF2-50	5 - 50	43	PA: 0.12 mm Ø
ZF2-100	10 - 100	43	PA: 0.12 mm Ø

Other tension ranges available on request.
Other units of measure available, such as g.
* Width of filament guide
** Suitable for 95 % of applications - PA = Polyamide Monofilament

Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

SCHMIDT scales are manufactured according to the most stringent quality requirements. Printed scales are not used. Instead, each scale is individually marked for the instrument involved. This ensures highest quality. Our special procedure makes it possible to provide tension meters

• calibrated to custom supplied material
• fine tuned to a specific tension range
• other units of measure such as g
