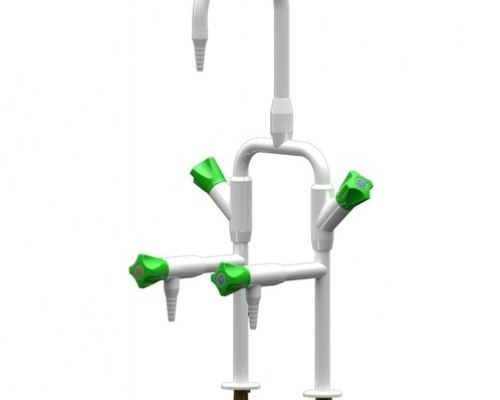

3 way taps/valves with goosenecks required at the sink tables made of forged brass body with 1/2” BSP male inlet and powder coated. Goosenecks shall have a separate outlet coupling with a female thread securely brazed to the gooseneck for attachment of serrated hose ends, aspirators and other outlet fittings. Rigid goosenecks shall have a male inlet thread and be threaded directly into the faucet body so as to be absolutely rigid. Swing goosenecks shall utilize a TFE packing with an externally adjustable packing nut. Water faucets and valves shall be fully assembled. All taps shall have plastic knob with ISI approved color code

1.     Raw Material:

·       Brass as per IS: 319 (I) (Machining Grade).

·       Brass as per IS: 8737 (Forging Grade).

·       Pipe as per IS: 407 (CuZn37).

·       Polypropylene Knob.

·       All Gasket / 'O' Ring Nitrile Rubber.

·       Inlet Connection 1/2" B.S.P.

2.     Testing:

·       Pneumatic Test at 18 Bars.

·       Hydraulic Test at 9 Bars.

·       Bursting Test at 36 Bars.

·       Working Temperature Range: 0' to 70' Celsius

3.     Powder Coating:

·       Epoxy Fusion Bond
