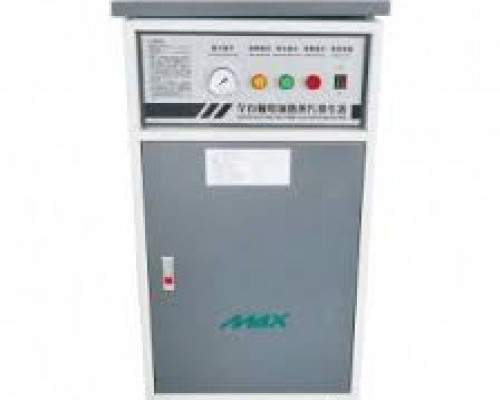

Electric Heating Steam Generator

Electric Heating Steam Generator @ Tk. 45,000

Item Specifications

Price	:	45000
Stock	:	In Stock
Origin	:	China

Description

Application: garment washing and ironing industry in the dry cleaner, dryer, ironing machine, iron, etc., food machinery industry in the tofu machine, steaming box, etc., other such as car washing, hot water supply, winter heating, etc.

Performance Feature

1) Novel appearance, better thermal insulation performance, easy to clean, maintenance, electrical components

2) Adopt high quality boiler steel, high strength, corrosion resistance.

3) Adopt high pressure vortex pump, automatic water, short water supply time, high pressure, durable.

4) The heating and pressure boosting time is short, and the steam can be generated continuously

5) Heating power can be switched according to air volume.

Characteristics

1.High-quality steel；

2.6kw-18kw multistage pump;never rust；

3.High/medium/low water level to choose；

4.Auto-switch between adding water and heating.

Technical Parameters

Model	Voltage	Heating power	Pressure	Gas production	Start-up time	Packing size(mm)	NW/GW(KG)
MAX-3A	220/380v	3kw	0.45Mpa	9	15	725X580X1100	74/86
MAX-6A	220/380v	6kw	0.45Mpa	9	15	725X580X1100	74/86
MAX-9A	380v	9kw	0.45Mpa	13	12	725X580X1100	74/86
MAX-12A	380v	12kw	0.45Mpa	17	10	725X580X1100	74/86
MAX-18A	380v	18kw	0.45Mpa	25	8	725X580X1100	74/86
MAX-24A	380v	24kw	0.4-0.5Mpa	33	12	900X860X1490	90/120
MAX-36A	380v	36kw	0.4-0.5Mpa	48	12	900X860X1490	90/120
MAX-6-0.4	220/380v	6kw	0.45Mpa	9	15	900X860X1490	90/120
MAX-9-0.4	220/380v	9kw	0.45Mpa	13	12	900X860X1490	90/120
MAX-12-0.4	380v	12kw	0.45Mpa	17	10	900X860X1490	90/120
MAX-18-0.4	380v	18kw	0.45Mpa	25	8	900X860X1490	90/120
MAX-24-0.4	380v	24kw	0.4-0.5Mpa	33	12	900X860X1490	90/120
MAX-36-0.4	380v	36kw	0.4-0.5Mpa	48	12	900X860X1490	90/120
