Aqua Boy Textile Moisture Meter @ Tk. 1,45,000
Item SpecificationsPrice : 145000 BDT Warranty Period : One Year Model : TEM1 Stock : In Stock Origin : Germany Discount : No Accessories : Available Brand : Aqua-Boy Product : Available DescriptionTEM1 Aqua Boy Textile Moisture Meter

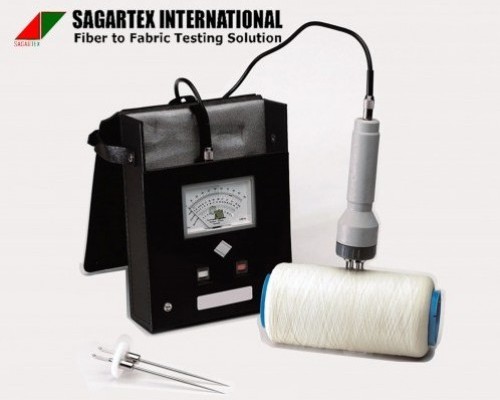

Aqua Boy Textile Moisture Meter
To determine the residual moisture of yarn bobbins, fabric rolls, filaments, fiber flocks etc.Portable textile moisture meter with analog displayTextil moisture meter TEM ISpecial Features
- Easy to use moisture meter for many applications
- Multiple scale for direct readings for wool, rayon and cotton, as well as 0 - 100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
Direct readings for wool, rayon and cotton,
and 0 - 100 scale for comparision tables
Comparision tables for 36 fiber
types- High accuracy and reproducibility
- Portable, battery-operated
- Optionally available: Manufacturers test certificate with calibration report
Standard Features
- A wide choice of needles, knifes, rollers and surface electrodes for many applications
- Compact housing supplied in leather carrying case with neck strap
Measuring principle
The moisture content is determined by measuring the electrical conductivity of the material which always is proportional to the content of the moisture.Comparison Table
Overview of fiber types listed in manual. For these fibers the moisture can be determined using the comparison tables and the 0 - 100 scale.
For PDF-File please click pictureAvailable Models
Model Description TEM-I moisture meter with standard accessories (complete) TEM moisture meter without standard accessories (only display device) Standard Accessories
Measuring Cable
Length 1 m
Order number: 50200MClick picture for more information
Electrode Holder
To take up various electrodes, weight 100 g
Order number: 50204MClick picture for more information
Needle Electrode
For measuring yarns, cross-wound bobbins and hanks
needle length 25 mm, weight 40 g
Order number: 50205MClick picture for more information
Needle Electrode
Same as No. 50205M for measuring yarns, cross-wound bobbins and hanks, etc.,
needle length 100 mm, weight 40 g
Order number: 50207Click picture for more information
More Electrodes
Cup Electrode
For cotton, 140 x 63 mm Ø, weight 55 g
Order number: 50202MClick picture for more information
Needle Electrode
For measuring yarns, cross-wound bobbins and hanks,
needle length 45 mm, weight 45 g
Order number: 50206MClick picture for more information
Needle Electrode
For measuring harder materials e. g. felt
needle length 17 mm, weight 40 g
Order number: 50208MClick picture for more information
Stab Electrode
For measuring textiles in sacks and rolls, especially yarn and fabrics,
needle length 325 mm, insulated shank 35 mm, weight 150 g
Order number: 50209aMClick picture for more information
Cotton Electrode
Especially for measuring cotton and similar products in sacks or pressed bales,
piercing point 75 mm, insulated shank 175 mm, weight 225 g
Order number: 50209BSMClick picture for more information
Knife Electrode
For measuring textile fabric, knife length 110 mm,
weight 50 g
Order number: 50210MClick picture for more information
Roller Electrode 211
Roller electrode for measuring running webs of fabrics
27 mm roller diameter, weight 100 g
Order number: 50211MClick picture for more information
Continuous Run Electrode
For yarn hanks and single filaments
16 mm roller diameter, weight 70 g
Order number: 50212MClick picture for more information
Surface Electrode
For measuring fabrics, surface diameter 23 mm,
weight 40 g
Order number: 50213MClick picture for more information
Calibration Electrode
With a fixed calibration value
Order number: 50299MClick picture for more information
Accessories (optional)
Calibration Report
Manufacturers test certificate with calibration report is optional available.Delivery Includes
Instrument with leather carrying case and battery, 1 connecting cable no. 200, electrode holder no. 204, electrodes no. 205 and no. 207, 1 operating instructions with comparison tables in 5 languages (german, english, french, spanish, italian) Specification
Measuring ranges: Wool: 8 to 24.5% moisture content
Rayon: 3 to 23% moisture content
Cotton: 2 to 12% moisture content
Comparison measurement: 0 - 100 scaleBattery: 9 V E-block Weight net (gross): Approx. 900 g (1300g) Dimensions: 200 x 250 x 70 mm (LxWxH) www.sagartexbd.com
