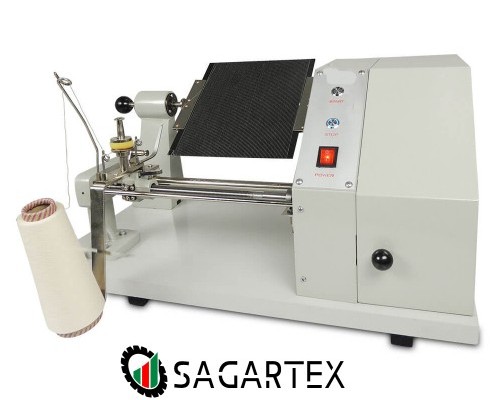

Yarn Appearance Board Winder

Yarn Appearance Board Winder @ Tk. 0

Item Specifications

Warranty Period	:	One Year Service Warranty
Model	:	HTY-004B
Stock	:	In Stock
Origin	:	Hong Kong
Discount	:	No
Accessories	:	Available
Brand	:	Tony Instruments
Product	:	Available
Delivery Charge	:	500 BDT

Description

Model NO.

HTY-004B

Type

Textile Testing Machine

Name

Yarn Testing Machine

Mode of Stretching Force

Mode of Stretching Force: Graded Adding Weight

Blackboard Dimension

250*180*2mm, 250*220*2mm

Power Supply Voltage

220V

Trademark

Hust Tony Instrument

Transport Package

Wooden Box

HTY-004B Yarn Inspection Machine/Yarn Testing Machine/tester/testing equipment

Usage:
The machine is used for rocking cotton, fabric and mixed textile thread. It's manufactured according to the Standards of GB9996-88 and FZ/T32004,32005 to check outline of yarn thread.Besides the six sets coiling density of new standard . the machine is added a set of old standard to meet the costumers' require. The left clamp plug is adjustable, and suit for two width blackboard of 220mm and 180mm.

Main technical indication

yarn density:	7.9.11,13.15,19 (/mm)
blackboard dimension:	2501802mm, 2502202mm
mode of stretching force:	mode of stretching force: graded adding weight
power supply voltage:	AC220V
motor power:	40W
outline dimension:	600370300mm
Standards:	GB/T996, 398, 5324; FZ/T32004, 32005
