DIGITAL MULTIMETER ST833D

DIGITAL MULTIMETER ST833D @ Tk. 8,500

Item Specifications

Price	:	8500 BDT
Warranty Period	:	One Year Warranty
Model	:	ST833D
Stock	:	In Stock
Origin	:	China
Discount	:	No
Accessories	:	Available
Brand	:	Smart Sensor
Product	:	Available
Delivery Charge	:	200 BDT

Description

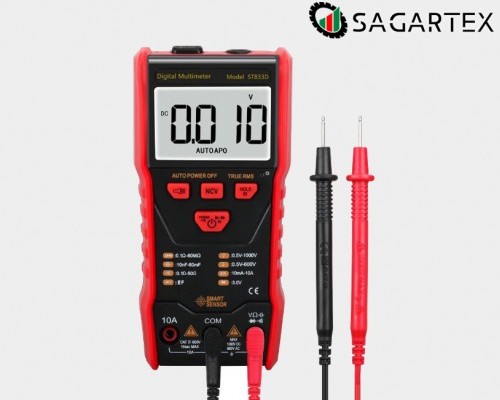

SMART SENSOR DIGITAL MULTIMETER ST833D

This is a pocket-size 3 5/6-bit automatic digital instrument. it can guarantee the backlight high brightness, the table is easy to carry, is a vast number of users extremely like the instrument,the backlight can be bright can be automatically turned off after 15 seconds. This series of instruments can be used to measure the DC voltage and AC voltage DC current and AC current、resistance、 capacitance diode continuity test, frequency measurement and true RMS measurement and other parameters. Is a ideal tool for the laboratory, factory, radio enthusiasts and families.

Product Features

1) Display: larger Liquid crystal LCD display.

2) Maximum display:5999(35/6) bit automatic polarity display

3) Measurement method: double integral A/D conversion

4) Sampling Rate: About 3 times per second

5) Over range display: the highest position shows "OL"

6) Low voltage display: low battery indication

7) Working environment: (0-40)°C,relative humidity ＜80%

8) Power Supply: AAA 1.5V battery*2(Not Included)

9) It is a stable performance, high precision, high reliability clear readings, and overload protection.

Technical Details

Specification
Model number	ST833A	ST833D (No Shifting)	ST890D
AC voltage(V)	6V-750V +/-(0.8%+3)	6V-600V +/-(0.5%+3)	2V-750V+/-(0.8%+5)
DC voltage(V)	6V-1000V +/-(0.5%+3)	6V-750V +/-(0.8%+3)	2V-1000V/200mV+/-(0.5%+3)
AC current(A)	60mA-600mA+/-(1.2%+10)	6A-10A +/-(2%+30)	2mA-200mA/10A+/-(2%+5)
DC current(A)	60mA-600mA +/-(1.2%+10)	6A-10A+/-(2%+30)	2mA-200mA/20μA/10A+/-(1.2%+8)
Resistance	600Ω/600KΩ/40MΩ+/-(0.8%+3)	600Ω/600KΩ/60MΩ +/-(0.8%+3)	2kΩ-200KΩ/200Ω/2MΩ-20MΩ+/-(0.8%+3)
Capacitance	600nF/600μF/30mF+/-(3.5%+20)	100nF/100μF/100mF+/-(3.5%+20)	20nF-200nF/2μF-2000μF/20mF+/-(5%+10)
Frequency(F)	10Hz-10MHz+/-(0.1%+3)	×	Sine & trigangular wave: 40Hz-1Kz, other waveform is 40Hz-200Hz
Maximum Display	5999(35/6) Bit Automatic Polarity	5999(35/6) Bit Automatic Polarity	1999(31/2) Bit Automatic Polarity
Zero/Fire Line Test	√	×	×
Diode	√	√	√
Transistor hFE	×	×	hFE/NPN/PNP
NVC	√	√	√
Backlight Manual/Auto Off	√	√	√
True RMS Measurement	√	√	√
Flashlight Lighting	×	√	×
Full Unit Symbol	√	√	×
Low voltage Indicator	√	√	√
Display	LCD display	LCD display	LCD display
Sampling Rate	About 3second/time	About 3second/time	About 3 second/time
Temperature Environment	0-40°C RH＜80%	0-40°C RH＜80%	0-40°C RH＜80%
Power Supply	2*1.5V AAA Battery	2*1.5V AAA Battery	9V Battery
Package Weight	340g	330g
