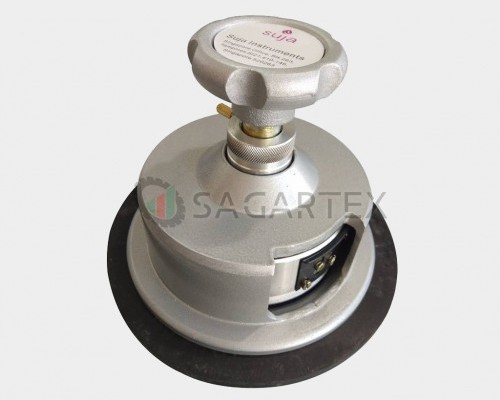

Round Cutter / Sample Cutter

A specialized instrument to determine the GSM of the textiles (Woven, Non Woven or Knitted, Fabrics) Our Round Cutter can be used for virtually any type of material

including Film, Foam, Carpet Paper and Board.
The unit is recommended for Yield Testing i.e. determination of weight per unit area. The sample cutter cuts out rapidly and accurately circular specimens of 50 Sq. cm.

which is exactly One Hundredth of a Square Meter, the result in grams, multiplied by 50, gives grams per square meter.

GRAMS Per Square METER = Specimen Weight in Grams x 50
TECHNICAL DETAILS :

 PROCEDURE :

The Cutter has been specially designed to make it portable due to its light weight. Only the fabric has to gripped between cutter base and

Rubber pad cutter top to be rotated gently clockwise direction for accurate cutting of fabric. The cut fabric can be weighed and multiplied by 50

to get GSM.

MAINTENANCE :
To maintain the efficiency of the Cutter:
a) The Blades should be turned or changed when they become damaged or blunt.
b) The Cutting Pad should also be changed, when it becomes worn out.

Note:- For best results, only approved blades and pads should be used.

ACCESSORY :
For determining the weight per area, a weighing scale having the minimum sensitivity of 0.01 gm is required.
